Key Fixture Considerations for Laser and Precision Welding

Laser welding and other forms of precision welding have opened the door to cleaner, faster, and more accurate metal joining across industries from automotive fabrication to aerospace engineering, consumer electronics, and medical devices. But with this increased level of precision comes a new challenge: maintaining absolute control of the part being welded. Even the slightest vibration, misalignment, or movement can impact weld quality, penetration depth, and overall accuracy.

Also read: Workplace Harassment Training for a Respectful Culture

This is why the strategic use of a welding fixture is essential. A well-designed fixture ensures the workpiece remains stable and perfectly positioned during the welding process, allowing operators and automated systems to achieve more consistent results. In this guide, you’ll learn why fixturing is so important for laser and precision welding, the key design considerations, and how proper fixture selection supports high-quality outcomes in modern manufacturing environments.

Why Fixturing Matters in Laser and Precision Welding

Laser and precision welding offer increased control and narrow heat-affected zones but these advantages also make the process more sensitive to setup errors. Production teams often face these pain points:

• Part distortion caused by uneven heating
• Misalignment that results in improper weld fusion
• Inconsistent results when parts shift even slightly

A welding fixture minimizes these risks by holding components securely in repeatable positions.

Understanding the Role of Welding Fixtures in Precision Welding

Laser welding relies on beam accuracy often within fractions of a millimeter. That means fixture design must support a very stable and predictable environment.

Key functions of a welding fixture include:

• Positioning: Ensuring every part is located exactly where the weld path requires
• Stabilizing: Preventing rotation, vibration, or shifting during the weld
• Repeatability: Enabling the same setup for thousands of identical parts
• Protection: Minimizing heat distortion through strategic clamping

Without proper fixturing, even advanced laser systems can produce variable welds that fail quality inspections or require rework.

Material Considerations for Welding Fixtures

Different fixture materials offer different thermal properties and durability levels.

Common fixture materials include:

Material	Advantages	Considerations
Steel	Extremely strong, minimal deflection	Can retain heat, needs proper spacing
Aluminum	Lightweight, dissipates heat well	Not ideal for very high-temperature environments
Cast Iron	Stable, vibration resistant	Heavy and harder to move
Copper Alloys	Excellent heat dissipation	More expensive

For laser welding, aluminum and copper-based fixtures are popular because they help dissipate heat and reduce localized distortion.

Clamping Systems and Fixture Geometry

Clamping determines how securely the part stays in place making it one of the most important fixture features.

Types of clamping systems:

• Mechanical clamps: Simple, adjustable, reliable
• Pneumatic clamps: Ideal for automation and consistent pressure
• Magnetic clamps: Useful for ferrous metals in low-force applications
• Quick-release clamps: Improve workflow and reduce operator fatigue

Fixture geometry considerations:

• Support thin sections to prevent bending
• Avoid obstructing the laser beam path
• Provide clearance for nozzles, optics, and shielding gas
• Ensure clamps apply even pressure without deforming the part

Good fixture geometry makes welding easier, reduces rework, and improves overall accuracy.

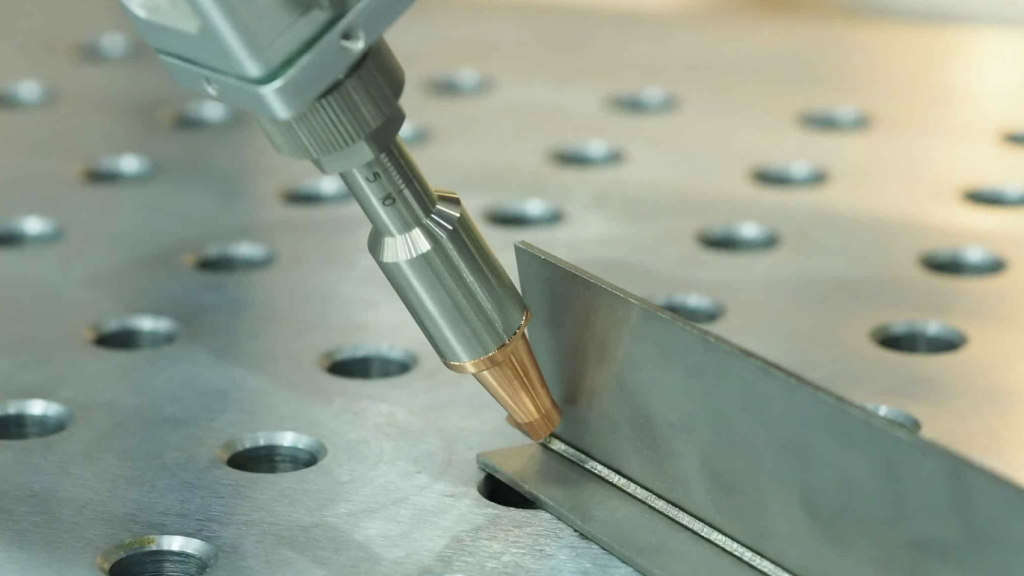

Minimizing Heat Distortion in Laser Welding

Laser welding generates concentrated heat in a very small area. While this is beneficial, it can still cause distortion especially on thin metals.

A welding fixture helps control distortion by:

• Holding sections in place as the metal expands and contracts
• Preventing twisting or warping during cooling
• Supporting heat-sensitive areas with backing materials
• Using thermal-resistant components to maintain geometry

For high-precision jobs, adding thermal pads or heat sinks can further improve results.

Designing Fixtures for Automation and Robotics

Automation places even higher demands on fixture consistency. A robot expects each part to be identical so fixturing must deliver that precision.

Automation-friendly fixture features include:

• Datums and reference stops for consistent part loading
• Anti-vibration construction for robotic speed
• Sensor integration for part presence detection
• Poka-yoke features to prevent incorrect loading
• Modular frames for accommodating multiple part variations

Robotic laser welding systems rely heavily on fixtures to maintain accuracy and minimize cycle time.

Fixture Accessibility and Operator Ergonomics

Fixtures must enhance productivity not slow it down. That means operators should be able to load and unload parts quickly without sacrificing safety.

Important ergonomic considerations:

• Use handles and repositionable clamps
• Avoid deep reaches or awkward angles
• Keep clamping mechanisms visible and intuitive
• Ensure fixtures can be cleaned and maintained easily

User-friendly fixtures reduce training time and improve throughput.

How Precision Welding Fixtures Differ From Standard Fixtures

Precision welding requires tighter tolerances than general welding. Consider this comparison:

Feature	Standard Fixture	Precision Welding Fixture
Accuracy	Moderate	High, sometimes micrometer-level
Material	Steel or iron	Often aluminum or copper alloys
Clamps	Basic	High-precision or pneumatic
Thermal Control	Minimal	Optimized for heat flow
Cost	Lower	Higher due to tighter requirements

While precision fixtures cost more, they dramatically improve weld reliability and reduce scrap.

Best Practices for Fixturing in Laser and Precision Welding

1. Maintain Clean Contact Surfaces

Debris can impact alignment and affect clamping force.

2. Support the Workpiece Evenly

Uneven support leads to warping or misalignment during welding.

3. Allow for Cooling Cycles

Fixtures should allow airflow or integrate thermal materials.

4. Avoid Over-Clamping

Too much pressure can deform the part, especially in thin metals.

5. Test Your Fixture Before Full Production

Run sample parts to identify improvements in geometry, clamps, and workflow.

For many manufacturers, selecting the right fixture or welding equipment is essential to achieving clean, reliable, and repeatable weld results. Brands like Denaliweld offer tools built for modern fabrication environments and precision workflows.

Conclusion

Fixturing plays a crucial role in achieving consistent results in laser welding and precision welding. By stabilizing parts, controlling distortion, improving alignment, and supporting robotic or manual setups, a well-designed welding fixture ensures that every weld meets quality standards. Whether you’re working with small components, thin materials, or high-volume automated lines, investing in proper fixturing helps deliver clean, accurate, and repeatable welds.

As precision welding continues to grow across manufacturing sectors, understanding fixture design principles becomes essential for engineers and welders alike. With the right fixture strategy and reliable welding equipment you can achieve high-performance results while reducing rework, scrap, and production time.
